SCHNAP Logo

Making Trade Life Easy!
Trade Discount 22%
CEA584T
BRAND: :hager

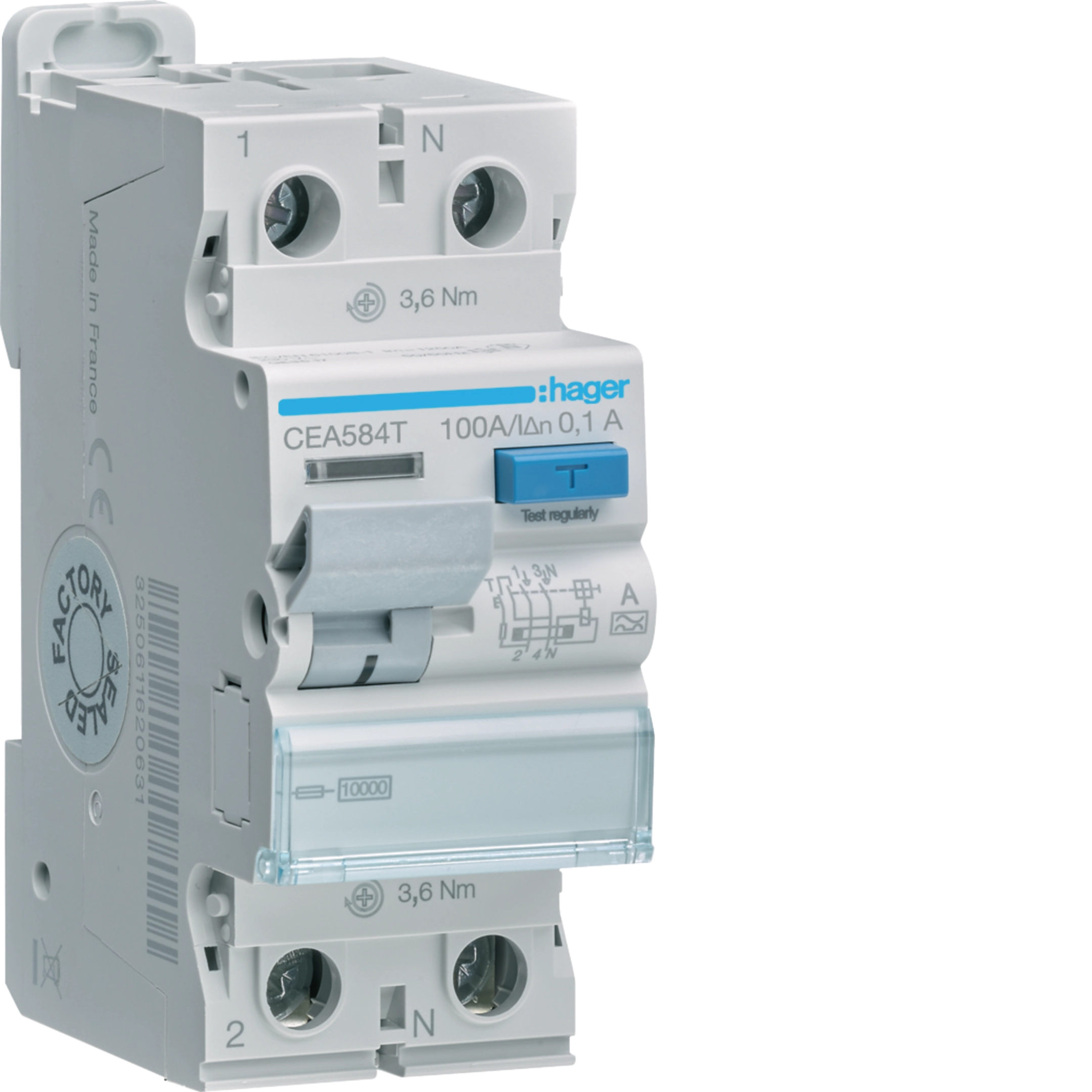

RCCB 1P+N 100A 100mA A


$264.60 List price: $338.40
+

Product Name/Title: RCCB 1P+N 100A 100mA A

Brand: Hager

SKU: CEA584T

Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB

Technical Specifications
  • Type of pole: 1P+N
  • Rated current: 100 A
  • Rated residual operating current: 100 mA
  • Breaking capacity: 1.25 kA
  • Rated conditional short-circuit current: 10 kA
  • Rated operational voltage: 240 V
  • Frequency: 50 - 60 Hz
  • Number of modules: 2
  • Residual current type: A
  • Total power loss under IN: 13.89 W
  • Electric endurance: 10,000 cycles
  • Mechanical operations: 20,000
  • Dimensions (H x L x W): 85mm x 70mm x 36mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 100A and residual operating current of 100mA.
  • Suitable for DIN Rail installation.
  • IP20 ingress protection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Electrical safety in various installations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 100A 100mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
