Trade Discount 22%
CDF663T
BRAND: :hager

RCCB 3P+N 63A 30mA F


$392.00 List price: $501.20
+

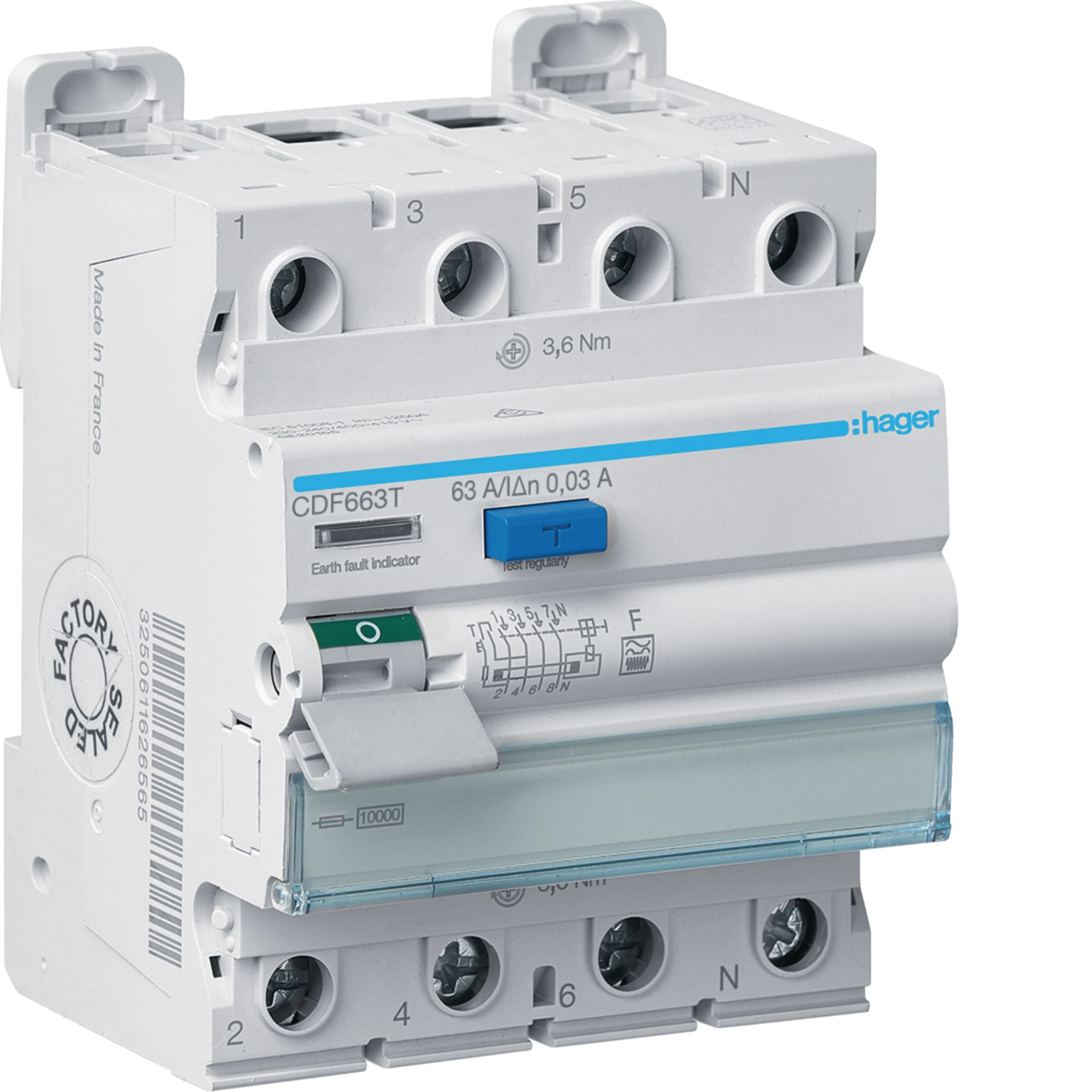

Product Name/Title: RCCB 3P+N 63A 30mA F

Brand: Hager

SKU: CDF663T

Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB

Technical Specifications
  • Type of pole: 3P+N
  • Rated current: 63 A
  • Rated residual operating current: 30 mA
  • Breaking capacity: 1.25 kA
  • Rated conditional short-circuit current: 10 kA
  • Rated operational voltage: 240 - 415 V
  • Dielectric strength: 2 kV
  • Rated impulse withstand voltage: 4000 V
  • Number of modules: 4
  • Ingress Protection: IP20
  • Electric endurance: 10,000 cycles
  • Mechanical operations: 20,000 cycles
  • Dimensions (H x L x W): 85mm x 70mm x 72mm
  • Weight: 0.5 kg
Key Features
  • 3P+N configuration for enhanced safety.
  • Rated current of 63A and residual current of 30mA.
  • IP20 ingress protection for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 3P+N 63A 30mA F is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
