Home/Electrical/Lighting/Light Fittings/Downlights/Round Surface Mount DL White Tri Color 12w

Trade Discount 23%

SKU: DL3017-WHTC12C02

BRAND: 3A Lighting

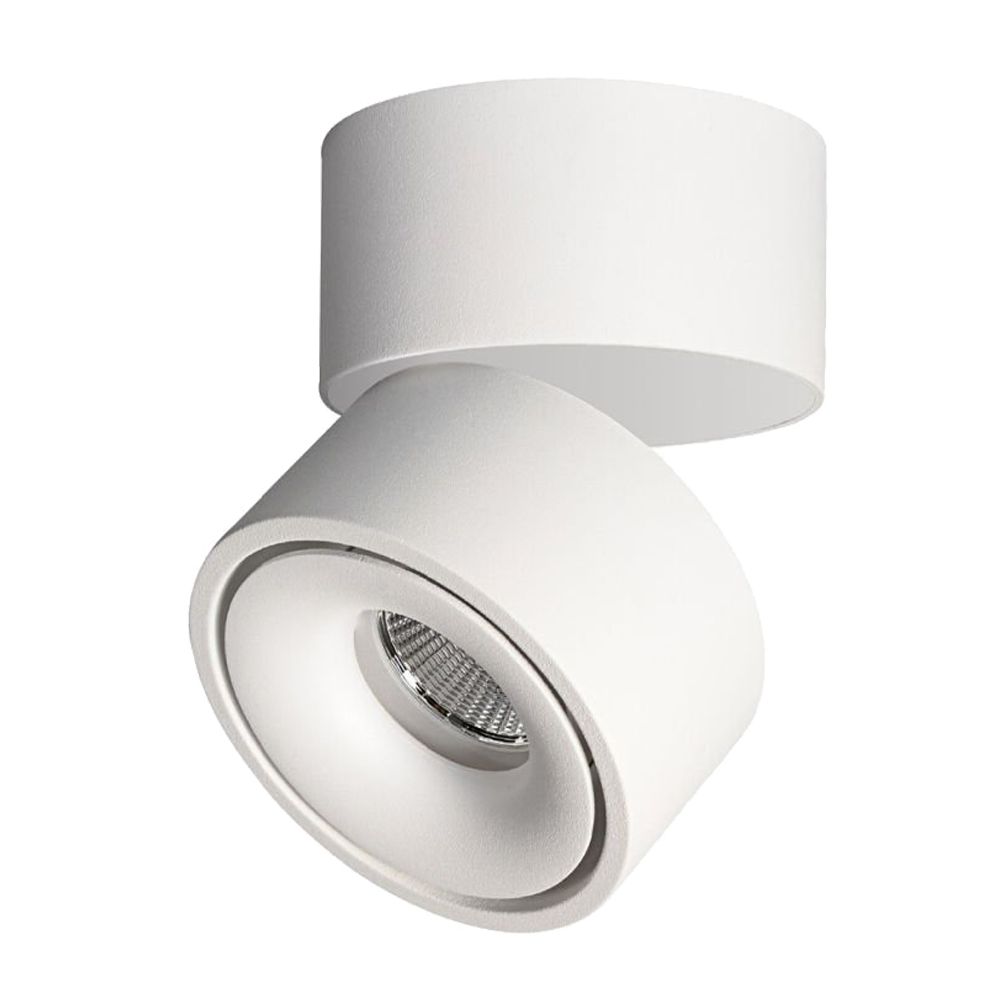

Round Surface Mount DL White Tri Color 12w

$75.00 List price: $97.70

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Round Surface Mount DL White Tri Color 12w

Brand: 3A Lighting

SKU: DL3017-WHTC12C02

Alternatively Known As: LED surface mount downlight, 3A Lighting 12W LED, Triac dimmable LED ceiling light, 3CCT LED surface light

Technical Specifications

Power: 12W
LED Chip: Bridgelux COB
Color Rendering Index (CRI): >90
Input Voltage: AC220-240V 50/60Hz
Beam Angle: 36°
Color: White
Connector included
3CCT selectable (multiple color temperatures)
Triac dimmable
Dimensions (H x L x W): 120mm x 90mm x 90mm
Weight: 0.5 kg

Key Features

12W Bridgelux COB LED chip for high efficiency
CRI>90 for superior color rendering
Triac dimmable for adjustable brightness
3CCT selectable for versatile color temperature options
36° beam angle for focused illumination
Surface mounted design with white finish
Includes connector for easy installation

Professional Installation Requirements

Installation by a licensed electrician is required to ensure safety and compliance with Australian standards.

Applications

Residential: Living rooms, bedrooms, kitchens, hallways
Commercial: Offices, retail stores, hospitality venues
General: Any indoor area requiring efficient, adjustable lighting

Standards & Compliance

Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment

Environmental Benefits

Energy-efficient LED technology reduces electricity consumption
Long lifespan minimizes waste and replacement frequency
Mercury-free and low heat emission for safer operation

Warranty Information

3 years warranty against manufacturing defects.

Available Now

The 3A Lighting DL3017-WHTC12C02 12W LED Surface Mounted Light is available for immediate purchase. Ideal for both residential and commercial lighting applications.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (0c4b3e_31ca66351d6040278d74707e85d22fc8.pdf, 1,186 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
