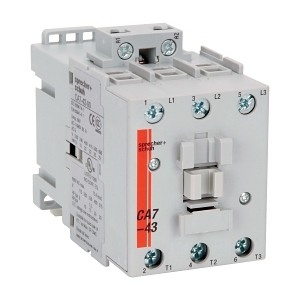

Product Name/Title: S+S CA7 Contactor 22kW 3Pole 24VDC Coil
Brand: NHP
SKU: CA743E0024VDC
Alternatively Known As: Power Contactor, AC Switching Contactor
Technical Specifications
- Rated operation current at AC 3, 400 V: 43 A
- Rated operation power at AC 3, 400 V: 22 kW
- Rated operation current at AC 1, 400 V: 85 A
- Max rated operation voltage: 690 V
- Control supply voltage: 24 V DC
- Power consumption DC coil pickup: 16 W
- Power consumption DC coil hold-in: 2.5 W
- Rated operation current at AC 3, 690 V: 25 A
- Rated operation power at AC 3, 690 V: 22 kW
- Rated operation power at AC 4, 400 V: 6.3 kW
- Rated operation current at AC 4, 400 V: 14 A
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 81mm x 107mm x 54mm
- Weight: 0.57 kg
Key Features
- 22 kW rated operation power
- 3 pole design with 24VDC coil
- IP2X protection degree
- Screw connection for main circuit
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and automation systems
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty applies.
Available Now
The S+S CA7 Contactor 22kW 3Pole 24VDC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
