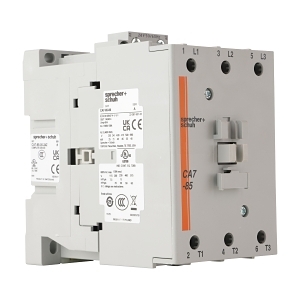

Product Name/Title: S+S CA7 Contactor 45kW 3Pole 24VAC Coil
Brand: NHP
SKU: CA7850024VAC
Alternatively Known As: Power Contactor, AC Contactor, 3 Pole Contactor
Technical Specifications
- Rated operation current at AC 3,400 V: 85 A
- Rated operation power at AC 3,400 V: 45 kW
- Rated operation current at AC 1,400 V: 100 A
- Max rated operation voltage: 690 V
- Control supply voltage at AC 50 Hz: 24 V
- Power consumption AC coil pickup: 235 VA
- Power consumption AC coil hold-in: 19.6 VA
- Type of electrical connection: Screw connection
- Mounting method: Screw mounting
- Dimensions (H x L x W): 122mm x 125.5mm x 72mm
- Weight: 1.45 kg
Key Features
- 45 kW rated operation power
- 3 pole design with 85 A rated operation current
- 24 VAC coil for control supply voltage
- IP2X degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and automation systems
- Commercial: HVAC systems and lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty applies.
Available Now
The S+S CA7 Contactor 45kW 3Pole 24VAC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
