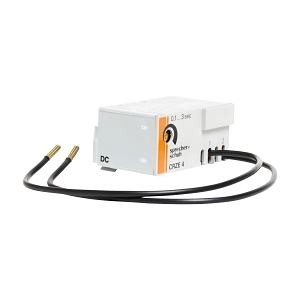

Product Name/Title: S+S CA7 Timer On Delay In Line 3s
Brand: NHP
SKU: CRZE43S
Alternatively Known As: Contactor Timer, Timer Relay, Delay Timer
Technical Specifications
- Voltage Type for Actuating: AC/DC
- Rated Control Supply Voltage (DC): 24-48 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 2 delayed changeover contacts
- Type of Electric Connection: Screw connection
- Time Range: 3 s
- Time Setting Accuracy: 5 %
- Power Supply Reset Time: 50 ms
- Power Consumption: 0.5 VA
- Electrical Lifespan of Control Contacts: 200,000 cycles
- Mechanical Lifetime of Control Contacts: 30,000,000 cycles
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 4 m/s²
- Max Vibration Frequency Operational: 100 Hz
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.2 kg
Key Features
- Delay on energization function for precise timing control.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems requiring timed control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design minimizes power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP S+S CA7 Timer On Delay In Line 3s is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
