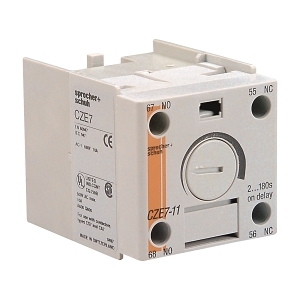

Product Name/Title: S+S CA7 Timer Pneumatic On Delay 30s
Brand: NHP
SKU: CZE730
Alternatively Known As: Pneumatic Timer Relay, Timer Delay Switch
Technical Specifications
- Voltage Type for Actuating: AC/DC
- Rated Control Supply Voltage (DC): 24-48 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 delayed changeover contact
- Type of Electric Connection: Screw connection
- Time Range: 30 s
- Time Setting Accuracy: 5 %
- Power Supply Reset Time: 50 ms
- Power Consumption: 0.5 VA
- Electrical Lifespan Control Contacts: 200,000 cycles
- Mechanical Lifetime Control Contacts: 30,000,000 cycles
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 4 m/s²
- Max Vibration Frequency Operational: 100 Hz
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Pneumatic timer with a 30-second delay.
- Suitable for DIN rail mounting.
- AC/DC voltage operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems requiring timed control
- Commercial: HVAC systems for delay functions
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA7 Timer Pneumatic On Delay 30s is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
