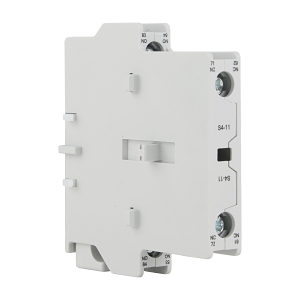

Product Name/Title: S+S CA9 Auxiliary Contact with 1NO Contact and 1NC Contact Outside Position for CA9 400 and 2650
Brand: NHP
SKU: CA9S411
Alternatively Known As: Auxiliary Contact Block, CA9 Contact Block
Technical Specifications
- Number of Contacts: 1NO, 1NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current (AC 15) at 24 V: 6 A
- Rated Operation Current (AC 15) at 120 V: 6 A
- Rated Operation Current (AC 15) at 240 V: 4 A
- Rated Operation Current (AC 15) at 400 V: 3 A
- Rated Operation Current (DC 13) at 24 V: 6 A
- Rated Operation Current (DC 13) at 110 V: 0.55 A
- Rated Operation Current (DC 13) at 220 V: 0.3 A
- Minimum Contact Rating Current: 50 mA
- Minimum Contact Rating Voltage: 12 V
- Dimensions (H x L x W): 100mm x 60mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Rated insulation voltage of 690 V.
- Compact design for easy integration with CA9 contactors.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Used in conjunction with CA9 contactors for control circuits.
- Commercial: Suitable for various automation and control applications.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed for energy-efficient operation in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase, ideal for industrial and commercial control applications.
