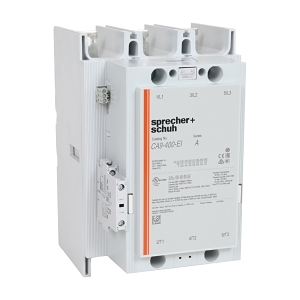

Product Name/Title: S+S CA9 Contactor 250kW 3Pole 48 to 130VAC and VDC Electronic Coil 1NO 1NC Contact Auxiliary
Brand: NHP
SKU: CA9460EI1148W
Alternatively Known As: Power Contactor, AC Contactor, Motor Contactor
Technical Specifications
- Rated operation current at AC 3, 400 V: 460 A
- Rated operation power at AC 3, 400 V: 250 kW
- Max rated operation voltage: 1000 V
- Voltage type for actuating: AC/DC
- Rated control supply voltage at AC 50 Hz: 48-130 V
- Rated control supply voltage at DC: 48-130 V
- Power consumption AC coil pickup: 1215 VA
- Power consumption AC coil hold-in: 12 VA
- Power consumption DC coil pickup: 1150 W
- Power consumption DC coil hold-in: 5 W
- Degree of protection: IP00
- Mounting method: Screw mounting
- Dimensions (H x L x W): 268mm x 216mm x 186mm
- Weight: 12 kg
Key Features
- 3 Pole contactor with 1 Normally Open and 1 Normally Closed auxiliary contact.
- Rated for operation at 250 kW with a control voltage range of 48 to 130 VAC and VDC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control, automation systems
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty applies.
Available Now
The S+S CA9 Contactor 250kW is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
Non-Returnable & Non-Cancellable
