BRAND: NHP

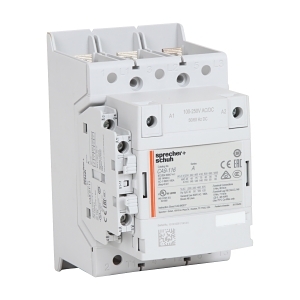

S+S CA9 Contactor 55kW 3Pole 24 to 60VAC and VDC Coil 1NO 1NC Contact Auxiliary with Lugs


$1,723.20 List price: $2,288.20
+

Product Name/Title: S+S CA9 Contactor 55kW 3Pole 24 to 60VAC and VDC Coil 1NO 1NC Contact Auxiliary with Lugs

Brand: NHP

SKU: CA91161124WL

Alternatively Known As: Power Contactor, AC Contactor, Motor Contactor

Technical Specifications
  • Rated operation current at AC 3, 400 V: 116 A
  • Rated operation power at AC 3, 400 V: 55 kW
  • Max rated operation voltage: 1000 V
  • Power consumption AC coil pickup: 225 VA
  • Power consumption DC coil pickup: 210 W
  • Type of electrical connection: Cable clamp
  • Mounting method: Screw mounting
  • Dimensions (H x L x W): 150mm x 126mm x 90mm
  • Weight: 1.75 kg
Key Features
  • 55 kW rated operation power
  • 3 Pole contactor with 1 normally open and 1 normally closed auxiliary contact
  • Rated control supply voltage of 24-60 V AC/DC
  • IP00 degree of protection
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and automation systems
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CA9 Contactor 55kW is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

CA91161124WL-AU-Contactor-55kW-3-Pole-Datasheet.pdf (CA91161124WL-AU-Contactor-55kW-3-Pole-Datasheet.pdf, 421 Kb) [Download]
