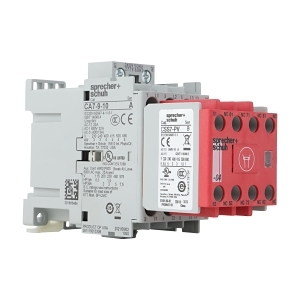

Product Name/Title: S+S CAS7 Safety Contactor 4kW 3P 110VAC Coil 1NO 4NC Contact Auxiliary
Brand: NHP
SKU: CAS7914C110VAC
Alternatively Known As: Safety Contactor, Power Contactor, AC Contactor
- Rated operation current at AC 3,400 V: 9 A
- Rated operation power at AC 3,400 V: 4 kW
- Rated operation current at AC 1,400 V: 32 A
- Max rated operation voltage: 690 V
- Control supply voltage at AC 50 Hz: 110 V
- Power consumption AC coil pickup: 75 VA
- Power consumption AC coil hold-in: 9.5 VA
- Degree of protection: IP2X
- Mounting method: Screw mounting
- Dimensions (H x L x W): 81mm x 120mm x 45mm
- Weight: 0.45 kg
- 4kW rated operation power with 3 poles and 1 normally open contact.
- 4 normally closed auxiliary contacts for enhanced control.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Machinery control and automation
- Commercial: HVAC systems and electrical installations
- Complies with relevant Australian standards for electrical safety.
- Designed for energy efficiency in industrial applications.
1 year warranty against manufacturing defects.
The S+S CAS7 Safety Contactor 4kW 3P 110VAC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control.
