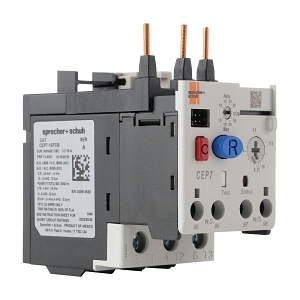

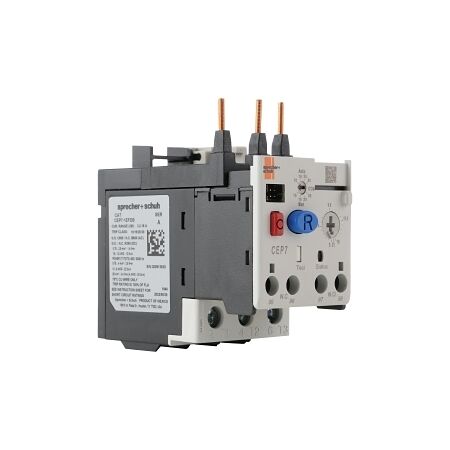

Product Name/Title: S+S CEP71 Overload Electronic Advanced 3.2 to 16A for CA7 9 and 23A
Brand: NHP
SKU: CEP71EFDB
Alternatively Known As: Motor Overload Relay, Electronic Overload Relay
- Adjustable Current Range: 3.2-16 A
- Max Rated Operation Voltage: 690 V
- Release Class: Adjustable
- Voltage Type for Actuating: Self powered
- Reset Function: Automatic and Push Button
- Type of Electrical Connection: Screw connection
- Mounting Method: Direct attachment
- Dimensions (H x L x W): 86.6mm x 84.7mm x 44.8mm
- Weight: 0.5 kg
- Adjustable current range from 3.2 to 16 A.
- Self-powered operation with automatic and push-button reset functions.
- Includes one normally closed and one normally open auxiliary contact.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in various applications
- Commercial: Equipment requiring overload protection
- Complies with relevant Australian standards for electrical safety.
- Energy-efficient design reduces power consumption.
2 years warranty against manufacturing defects.
The S+S CEP71 Overload Electronic Advanced Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
