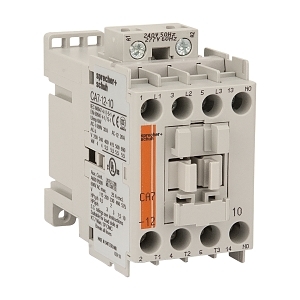

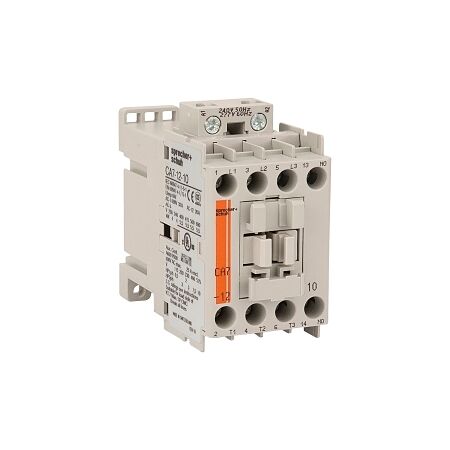

Product Name/Title: S+S CNX Contactor 11kW 3Pole 24VAC
Brand: NHP
SKU: CNX20724VAC
Alternatively Known As: HVAC Contactor, Power Contactor, AC Contactor
- Number of normally open contacts: 3
- Rated operation current at AC 3, 400 V: 23 A
- Rated operation power at AC 3, 400 V: 11 kW
- Max rated operation voltage: 690 V
- Control supply voltage: 24 V AC
- Power consumption AC coil pickup: 75 VA
- Degree of protection: IP20
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.39 kg
- 3 normally open contacts for main contact
- Rated for 11 kW operation at 400 V
- Control supply voltage of 24 V AC
- Professional installation by a qualified electrician is recommended for optimal safety.
- HVAC systems
- Industrial automation
- Motor control applications
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Efficient operation reduces energy consumption in HVAC systems.
1 year warranty against manufacturing defects.
The S+S CNX Contactor 11kW 3Pole 24VAC is available now for immediate purchase, ideal for HVAC and industrial applications.
