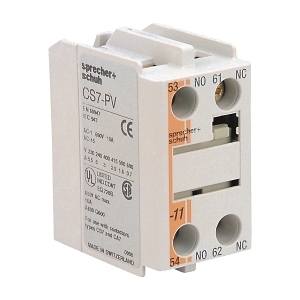

Product Name/Title: S+S CS7 Auxiliary Contact with 2NO Contacts Top Mount
Brand: NHP
SKU: CS7PV20
Alternatively Known As: Auxiliary Contact Block, Control Relay Contact
- Number of Contacts: 2 NO
- Rated Insulation Voltage: 690 V
- Rated Operation Current (AC 15, 24 V): 6 A
- Rated Operation Current (AC 15, 120 V): 6 A
- Rated Operation Current (AC 15, 240 V): 5 A
- Rated Operation Current (AC 15, 400 V): 3 A
- Rated Operation Current (DC 12-24 V): 12 A
- Rated Operation Current (DC 12-110 V): 3.5 A
- Rated Operation Current (DC 12-220 V): 0.55 A
- Rated Operation Current (DC 13-24 V): 5 A
- Rated Operation Current (DC 13-110 V): 1.2 A
- Rated Operation Current (DC 13-220 V): 0.6 A
- Min Contact Rating Current: 5 mA
- Min Contact Rating Voltage: 17 V
- Rated Operation Current (AC 15, 230 V): 5.5 A
- Mounting Method: Top mounting
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.5 kg
- Top mounting design for easy installation.
- 2 Normally Open (NO) contacts for versatile control.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control systems, automation equipment
- Commercial: Electrical panels, machinery
- Complies with AS/NZS 60950 for safety and performance standards.
- Designed for energy efficiency in control systems.
1 year warranty against manufacturing defects.
The S+S CS7 Auxiliary Contact with 2NO Contacts Top Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
