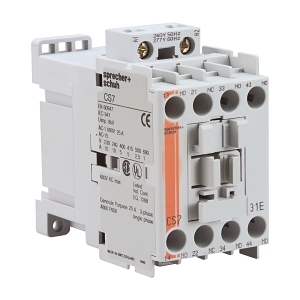

Product Name/Title: S+S CS7 Control Relay 240VAC Coil 3NO 1NC Contact
Brand: NHP
SKU: CS731E240VAC
Alternatively Known As: CS7 Relay, Control Relay, NHP Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 3
- Number of Auxiliary Contacts (NC): 1
- Rated Operation Current: 20 A at 400 V
- Max Rated Operation Voltage: 690 V
- Voltage Type for Actuating: AC
- Control Supply Voltage (50 Hz): 240 V
- Power Consumption (AC Coil Pickup): 75 VA
- Power Consumption (AC Coil Hold-in): 9.5 VA
- Control Supply Voltage (60 Hz): 277 V
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.39 kg
Key Features
- 3 Normally Open (NO) contacts and 1 Normally Closed (NC) contact.
- Rated operation current of 20 A at 400 V.
- Control supply voltage of 240 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits for machinery
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 240VAC Coil 3NO 1NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
