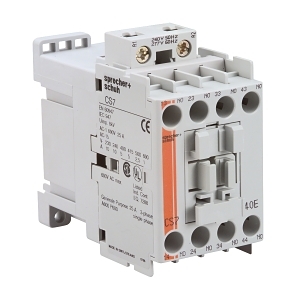

Product Name/Title: S+S CS7 Control Relay 48 to 72VDC Coil 4NO Contact
Brand: NHP
SKU: CS7E40E48E
Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 4
- Rated Operation Current (Ie) at 400 V: 20 A
- Max Rated Operation Voltage (UE) AC: 690 V
- Voltage Type for Actuating: DC
- Power Consumption DC Coil Pickup: 10 W
- Power Consumption DC Coil Hold-in: 1.9 W
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.43 kg
Key Features
- 4 Normally Open (NO) contacts for versatile control applications.
- Rated for operation with a control supply voltage of 48-72 VDC.
- DIN-rail or screw mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits for machinery
- Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 48 to 72VDC Coil 4NO Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
