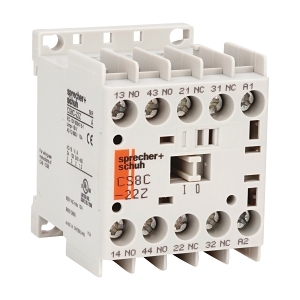

S+S CS8 Relay 24VDC Coil 1NO 1NC 1 Late Make 1 Late Break Contact
The S+S CS8 Relay with a 24VDC coil features 1 Normally Open and 1 Normally Closed contact, ideal for control applications in industrial automation and building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S+S CS8 Relay 24VDC Coil 1NO 1NC 1 Late Make 1 Late Break Contact
Brand: NHP
SKU: CS8CL22Z24VDC
Alternatively Known As: Control Relay Mini, CS8 Relay, 24VDC Relay
Technical Specifications
- Rated operation current: 10 A at 400 V
- Max rated operation voltage: 690 V AC
- Control supply voltage: 24 V DC
- Power consumption (coil pickup): 3 W
- Power consumption (coil hold-in): 3 W
- Mounting method: DIN-rail/screw
- Connection type: Screw connection
- Dimensions (H x L x W): 56mm x 53mm x 45mm
- Weight: 0.2 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Delayed switching capabilities for auxiliary contacts.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits in machinery
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation with low power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS8 Relay 24VDC Coil is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
