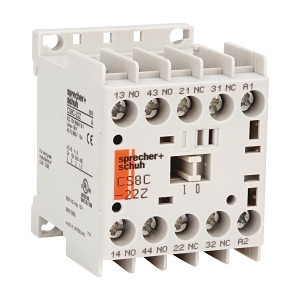

S+S CS8 Relay 24VDC Coil 3NO 1NC Contact
The S+S CS8 Relay 24VDC Coil features a compact design with 3 normally open and 1 normally closed contact, ideal for various control applications in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S+S CS8 Relay 24VDC Coil 3NO 1NC Contact
Brand: NHP
SKU: CS8C31Z24VDC
Alternatively Known As: Control Relay, Mini Relay, 24V DC Relay
Technical Specifications
- Number of auxiliary contacts (NO): 3
- Number of auxiliary contacts (NC): 1
- Rated operation current (Ie) at 400 V: 10 A
- Max rated operation voltage (Ue) AC: 690 V
- Voltage type for actuating: DC
- Control supply voltage (Us) at DC: 24 V
- Power consumption DC coil pickup: 3 W
- Power consumption DC coil hold-in: 3 W
- Mounting method: DIN-rail/screw
- Connection type auxiliary circuit: Screw connection
- Dimensions (H x L x W): 56mm x 53mm x 45mm
- Weight: 0.2 kg
Key Features
- Mini control relay with 3 normally open and 1 normally closed contact.
- Rated for 24V DC operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits in machinery
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS8 Relay 24VDC Coil 3NO 1NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
