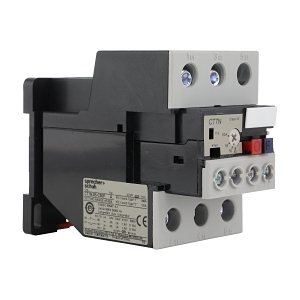

Product Name/Title: S+S CT7N Thermal Overload Relay 45 to 60A Separate Mounting for DIN Rail or Panel Mounting Devices
Brand: NHP
SKU: CT7N85C60P
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, CT7N Relay
- Adjustable Current Range: 45-60 A
- Release Class: CLASS 10
- Max Rated Operation Voltage: 690 V
- Number of Auxiliary Contacts: 1 NC, 1 NO
- Electrical Connection: Screw connection
- Mounting Method: Separate positioning
- Dimensions (H x L x W): 82mm x 103.5mm x 56mm
- Weight: 0.41 kg
- Adjustable current range from 45 to 60 A.
- Automatic and push-button reset functions.
- Includes one normally closed and one normally open auxiliary contact.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in various applications
- Commercial: Suitable for panel mounting in electrical installations
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Enhances energy efficiency by preventing motor overload and potential damage.
1 year warranty against manufacturing defects.
The S+S CT7N Thermal Overload Relay is available now for immediate purchase, ideal for motor protection in various applications.
