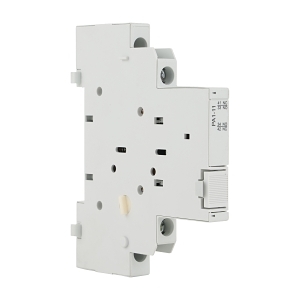

Product Name/Title: S+S KT5 Auxiliary Contact with 1NO Contact and 1NC Contact Right Side Mount
Brand: NHP
SKU: KT5PA111
Alternatively Known As: KT5 Auxiliary Contact, Motor Protection Auxiliary Contact
Technical Specifications
- Number of contacts: 1 NO, 1 NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 6 A
- Rated operation current at AC 15 (24 V): 6 A
- Rated operation current at AC 15 (120 V): 6 A
- Rated operation current at AC 15 (240 V): 4 A
- Rated operation current at AC 15 (400 V): 3 A
- Rated operation current at DC 13 (24 V): 2 A
- Rated operation current at DC 13 (125 V): 0.55 A
- Rated operation current at DC 13 (250 V): 0.27 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Mounting method: Side mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Rated insulation voltage of 690 V.
- Side mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection applications
- Commercial: Equipment control and automation
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances equipment longevity by providing reliable protection.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT5 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for motor protection in industrial and commercial applications.
