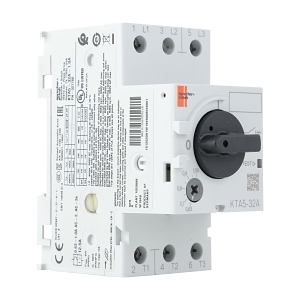

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 2.5 to 4.0A
Brand: NHP
SKU: KTA532AB40
Alternatively Known As: Motor Protection Breaker, Circuit Breaker, Overload Relay
Technical Specifications
- Rated Permanent Current: 4 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 75 kA at 400 V AC
- Rated Operation Power: 1.5 kW at AC 3, 400 V
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 90mm x 85.5mm x 45mm
- Weight: 0.28 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 2.5 to 4 A.
- IP2X degree of protection ensuring safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery
- Commercial: Equipment requiring overload protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Enhances equipment longevity by preventing motor damage due to overload.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 2.5 to 4.0A is available now for immediate purchase, ideal for industrial and commercial applications.
