KTA532AC10
BRAND: NHP

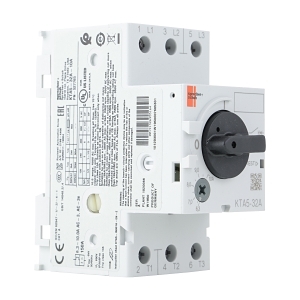

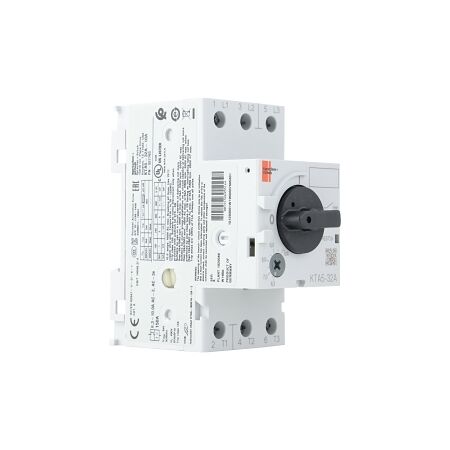

S+S KT5 Motor Protection Circuit Breaker 6.3 to 10A


$335.00 List price: $444.80
+

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 6.3 to 10A

Brand: NHP

SKU: KTA532AC10

Alternatively Known As: Motor Protection Circuit Breaker, KT5 Circuit Breaker

Technical Specifications
  • Rated Permanent Current: 10 A
  • Max Rated Operation Voltage: 690 V
  • Rated Short Circuit Breaking Capacity: 50 kA at 400 V AC
  • Rated Operation Power at AC 3: 4 kW
  • Type of Control Element: Turn handle
  • Type of Electrical Connection: Screw connection
  • Number of Poles: 3
  • Max Tightening Torque: 2.5 Nm
  • Dimensions (H x L x W): 90mm x 85.5mm x 45mm
  • Weight: 0.28 kg
Key Features
  • Thermomagnetic switch-off technique for reliable protection.
  • Adjustable long-time overload protection from 6.3 to 10 A.
  • IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in manufacturing and processing plants
  • Commercial: Equipment protection in commercial buildings
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The S+S KT5 Motor Protection Circuit Breaker 6.3 to 10A is available now for immediate purchase. Ideal for industrial and commercial applications.

KTA532AC10-AU-Motor-Protection-Circuit-Breaker-Datasheet.pdf (KTA532AC10-AU-Motor-Protection-Circuit-Breaker-Datasheet.pdf, 425 Kb) [Download]
