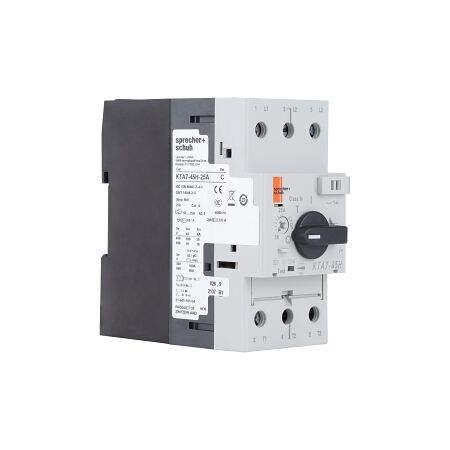

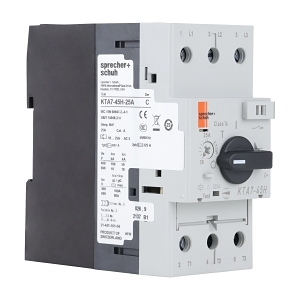

Product Name/Title: S+S KT7 Motor Protection Circuit Breaker 10 to 16A
Brand: NHP
SKU: KTA745H16A
Alternatively Known As: Motor Protection Circuit Breaker, KT7 Circuit Breaker
Technical Specifications
- Rated Permanent Current: 16 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA
- Rated Operation Power at AC 3, 400 V: 7.5 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 3.5 Nm
- Dimensions (H x L x W): 111.4mm x 114.5mm x 54mm
- Weight: 0.78 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 10 to 16 A.
- High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Suitable for use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT7 Motor Protection Circuit Breaker 10 to 16A is available now for immediate purchase. Ideal for industrial and commercial applications.
