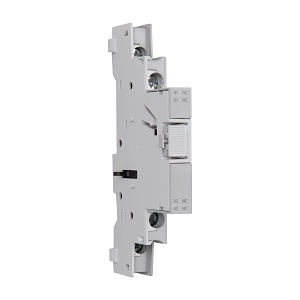

Product Name/Title: S+S KT9 Auxiliary Contact with 1NO Contact and 1NC Contact Side Mount
Brand: NHP
SKU: KT9PA111
Alternatively Known As: KT9 Auxiliary Contact, Motor Protection Auxiliary Contact
Technical Specifications
- Number of contacts: 1 NO, 1 NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (24 V): 6 A
- Rated operation current at AC 15 (120 V): 5 A
- Rated operation current at AC 15 (240 V): 3 A
- Rated operation current at AC 15 (400 V): 2 A
- Rated operation current at DC 13 (24 V): 2 A
- Rated operation current at DC 13 (125 V): 0.55 A
- Rated operation current at DC 13 (250 V): 0.27 A
- Mounting method: Side mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Rated insulation voltage of 690 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection systems
- Commercial: Equipment requiring auxiliary contacts for control
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances safety and reliability in motor control systems, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial applications.
