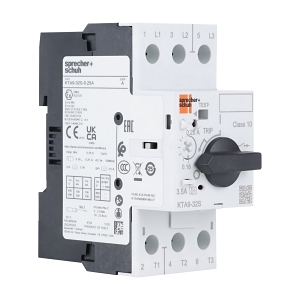

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 0.1 to 0.16A
Brand: NHP
SKU: KTA932S0P16A
Alternatively Known As: Motor Protection Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Permanent Current: 0.16 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 0.02 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 83.4mm x 45mm
- Weight: 0.35 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 0.1 to 0.16 A.
- High short-circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of fire hazards.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 0.1 to 0.16A is available now for immediate purchase. Ideal for industrial and commercial applications.
