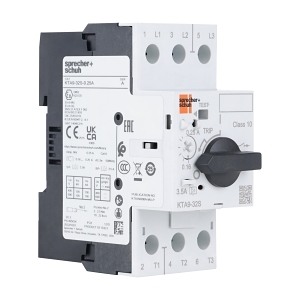

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 6.3 to 10A
Brand: NHP
SKU: KTC940H10A
Alternatively Known As: Motor Protection Circuit Breaker, KTC940H, KT9 Circuit Breaker
- Rated Permanent Current: 10 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 6.3-10 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 100 kA at 400 V AC
- Rated Operation Power at AC 3: 4 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.39 kg
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 6.3 to 10 A.
- IP2X degree of protection ensuring safety against accidental contact.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial buildings
- Complies with AS/NZS 3000 for electrical installation safety.
- Efficient protection reduces energy waste and enhances equipment lifespan.
2 years warranty against manufacturing defects.
The S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 6.3 to 10A is available now for immediate purchase, ideal for industrial and commercial applications.
