Single Mode Fibre Optic Pigtails 12-Fibre SC | 9um Core | LSZH Tight Buffer | ITU-T G652.D by Cabac
MSS Fibre SM 9um 12-Fibre SC 900um Pigtails - 12 Pack by Cabac offers high-performance OS2 fibre optic pigtails with LSZH tight buffer, ideal for fibre optic network installations and data communications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

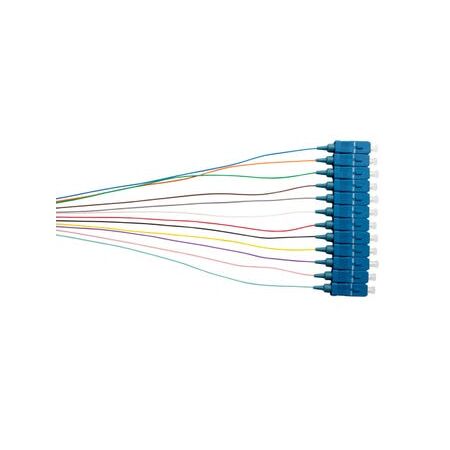

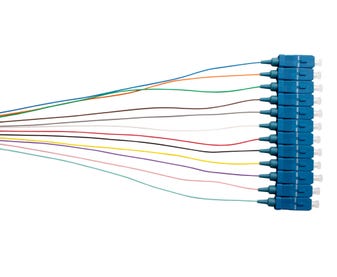

Product Name/Title: MSS Fibre SM 9um 12-Fibre SC 900um Pigtails - 12 Pack
Brand: Cabac
SKU: PSC2M/900-SMC12
Alternatively Known As: Single Mode Fibre Optic Pigtails, 12 Fibre SC Pigtails, OS2 Fibre Pigtails, LSZH Fibre Pigtails
Technical Specifications
- Fibre Type: Single Mode OS2
- Core Diameter: 9 microns
- Fibre Count: 12
- Connector Type: SC UPC
- Buffer Diameter: 900 microns
- Standards Compliance: ITU-T G652.D, TIA/EIA 492 CAAB
- Fibre Colour Coding: IEC 60304, TIA-598
- Cable Jacket: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 20mm x 150mm x 150mm
- Weight: 0.1 kg
Key Features
- 6 or 12 Pack UPC Connector Pigtails packaged and labelled for protection, performance data, and traceability
- 900um Low Smoke Zero Halogen (LSZH) tight buffer
- OS2 fibre conforms to ITU-T G652.D, TIA/EIA 492 CAAB
- Individual fibres coloured as per IEC 60304, TIA-598
- REACH, RoHS and SvHC materials compliant
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Fibre optic network installations
- Telecommunications
- Data communications
- FTTx (Fiber to the x) deployments
- Optical fibre patching and splicing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
- Compliant with REACH, RoHS, and SvHC standards ensuring environmentally safe materials
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The MSS Fibre SM 9um 12-Fibre SC 900um Pigtails - 12 Pack by Cabac is available now for immediate purchase. Ideal for fibre optic network and telecommunications applications.
