BRAND: NHP

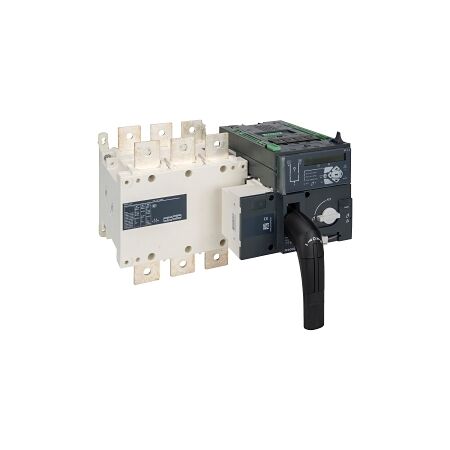

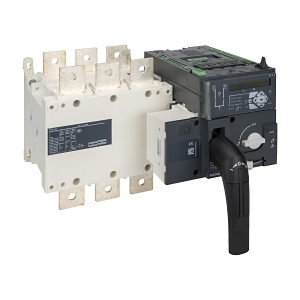

Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 3 Pole 1250A


$24,454.90 List price: $32,472.90

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 3 Pole 1250A

Brand: NHP

SKU: 95733120

Alternatively Known As: Automatic Transfer Switch, ATyS Switch, Socomec Transfer Switch

Technical Specifications
  • Rated Operating Voltage: 1000 V
  • Max Rated Operation Voltage: 1000 V
  • Rated Permanent Current: 1250 A
  • Rated Control Supply Voltage: 400-690 V
  • Rated Operation Power: 750 kW
  • Rated Short Time Withstand Current: 35 kA
  • Rated Insulation Voltage: 1000 V
  • Switching Power at 400 V: 10000 kW
  • Conditioned Rated Short Circuit Current: 100 kA
  • Number of Poles: 3
  • Motor Drive Integrated: Yes
  • Interlockable: Yes
  • Padlock Locking: Yes
  • Dimensions (H x L x W): 306.5mm x 391.5mm x 504mm
  • Weight: 46 kg
Key Features
  • Advanced integrated logic for seamless power transfer.
  • 3 pole configuration with a rated current of 1250A.
  • IP20 protection rating for safe operation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Backup power solutions
  • General: Automatic transfer switching for critical loads
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Efficient power management reduces energy waste and enhances system reliability.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Socomec ATyS Automatic Transfer Switch is available now for immediate purchase, ideal for industrial and commercial power management solutions.

95733120-AU-ATyS-Transfer-Switch-Advanced-Logic-3P-Datasheet.pdf (95733120-AU-ATyS-Transfer-Switch-Advanced-Logic-3P-Datasheet.pdf, 701 Kb) [Download]
