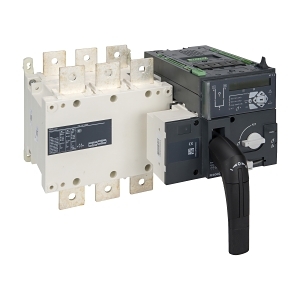

Product Name/Title: Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 3 Pole 125A
Brand: NHP
SKU: 95733012
Alternatively Known As: Automatic Transfer Switch, ATyS Switch, Socomec Transfer Switch
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 125 A
- Rated Operation Power: 63 kW
- Rated Short Time Withstand Current: 7 kA
- Conditioned Rated Short Circuit Current: 100 kA
- Number of Poles: 3
- Type of Electrical Connection: Bolt connection
- Degree of Protection: IP20
- Integrated Motor Drive: Yes
- Dimensions (H x L x W): 154mm x 244mm x 304mm
- Weight: 9.18 kg
- Advanced integrated logic for reliable operation.
- 3 pole configuration with a rated current of 125A.
- IP20 protection rating for safe operation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Automatic transfer switching for critical loads
- Complies with relevant Australian standards for electrical safety.
- Energy-efficient design enhances power management.
2 years warranty against manufacturing defects.
The Socomec ATyS Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power management applications.
