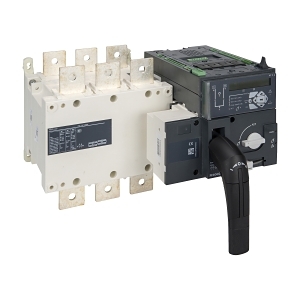

Product Name/Title: Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 4 Pole 800A
Brand: NHP
SKU: 95734080
Alternatively Known As: Automatic Transfer Switch, ATyS Switch, Socomec Transfer Switch
Technical Specifications
- Rated Operating Voltage: 1000 V
- Max Rated Operation Voltage: 1000 V
- Rated Permanent Current: 800 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power: 475 kW
- Rated Short Time Withstand Current: 35 kA
- Rated Insulation Voltage: 1000 V
- Switching Power at 400 V: 6400 kW
- Conditioned Rated Short Circuit Current: 50 kA
- Number of Poles: 4
- Motor Drive Integrated: Yes
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 306.5mm x 391.5mm x 504mm
- Weight: 50 kg
Key Features
- Advanced integrated logic for automatic transfer switching.
- 4 pole design with a rated current of 800A.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal performance and safety.
Applications
- Industrial: Power distribution systems
- Commercial: Data centers, critical power applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Socomec ATyS Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
