BRAND: NHP

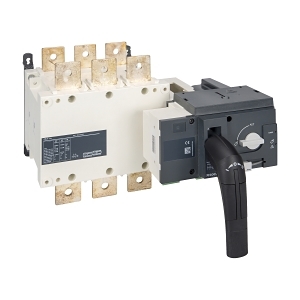

Socomec ATyS Remote Transfer Switch - ATyS r, No Integrated Logic, 3 Pole 500A


$10,083.90 List price: $13,390.10
+

Product Name/Title: Socomec ATyS Remote Transfer Switch - ATyS r, No Integrated Logic, 3 Pole 500A

Brand: NHP

SKU: 95233050

Alternatively Known As: Remote Transfer Switch, Automatic Transfer Switch, ATyS Switch

Technical Specifications
  • Rated Operating Voltage: 1000 V
  • Max Rated Operation Voltage: 1000 V
  • Rated Permanent Current: 500 A
  • Rated Control Supply Voltage: 400-690 V
  • Rated Operation Power: 295 kW
  • Rated Short Time Withstand Current: 11 kA
  • Rated Insulation Voltage: 1000 V
  • Switching Power at 400 V: 4000 kW
  • Conditioned Rated Short Circuit Current: 50 kA
  • Number of Poles: 3
  • Motor Drive Integrated: Yes
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 154mm x 320.5mm x 304mm
  • Weight: 14.7 kg
Key Features
  • 3 Pole configuration with a rated permanent current of 500A.
  • IP20 protection rating for safe operation.
  • Interlockable design with padlock locking for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Backup power solutions
  • General: Automatic transfer switching for critical loads
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power management reduces energy waste and enhances system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec ATyS Remote Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power transfer.

Non-Returnable & Non-Cancellable

95233050-AU-ATyS-Transfer-Switch-NO-Logic-3P-Datasheet.pdf (95233050-AU-ATyS-Transfer-Switch-NO-Logic-3P-Datasheet.pdf, 588 Kb) [Download]
