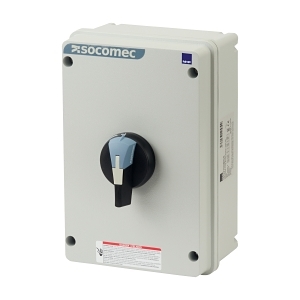

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Aluminium Grey, Handle - Blue, 3P 100A
Brand: NHP
SKU: ISO3100MGS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
Technical Specifications
- Rated Permanent Current: 100 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Operation Current: 100 A at AC-23A 690 V
- Rated Short Time Withstand Current: 5 kA
- Rated Insulation Voltage: 690 V
- Rated Operating Voltage: 690 V
- Conditioned Rated Short Circuit Current: 20 kA
- Number of Auxiliary Contacts: 0 NC, 0 NO
- Degree of Protection: IP65, NEMA 4X
- Connectable Conductor Cross Section: 10-70 mm²
- Dimensions (H x L x W): 298mm x 124mm x 200mm
- Weight: 0.55 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Safety isolation in various electrical installations
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
Standard warranty applies.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
