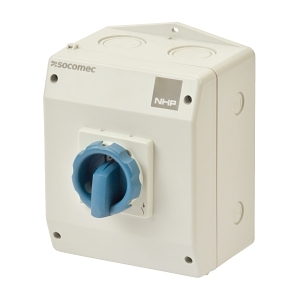

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 3P 100A
Brand: NHP
SKU: ISO3100PGS
Alternatively Known As: ISO Switch, Isolator Switch, Switch Disconnector
Technical Specifications
- Rated Permanent Current: 100 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Operation Current at AC-23A 400V: 70 A
- Rated Operation Current at AC-23A 690V: 34 A
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Operating Voltage: 690 V
- Conditioned Rated Short Circuit Current: 20 kA
- Material Housing: Plastic
- Degree of Protection: IP65
- NEMA Rating: 4X
- Connectable Conductor Cross Section: 4-35 mm²
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.77 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Safety isolation in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable plastic housing reduces environmental impact compared to metal alternatives.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical isolation applications.
