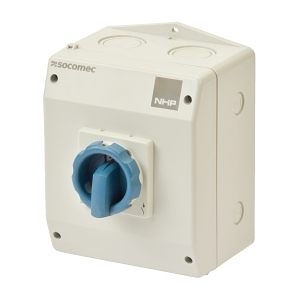

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 4P 100A
Brand: NHP
SKU: ISO4100PGS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Switch Disconnector
Technical Specifications
- Rated Permanent Current: 100 A
- Number of Poles: 4
- Frequency: 50/60 Hz
- Rated Operation Current: 34 A at AC 23A 690 V
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Electrical Connection Type: Screw connection
- Rated Operating Voltage: 690 V
- Auxiliary Contacts: 0 Normally Closed, 0 Normally Open, 0 Change Over
- Motor Drive Integrated: No
- Material Housing: Plastic
- Control Element Colour: Other
- Degree of Protection: IP65
- NEMA Rating: 4X
- Interlockable: No
- Number of Switches: 1
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.83 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- 4 poles for versatile electrical connections.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for isolating electrical circuits in various industrial applications.
- Commercial: Ideal for use in commercial buildings requiring reliable electrical isolation.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable plastic housing reduces environmental impact compared to metal alternatives.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase, ideal for industrial and commercial applications.
