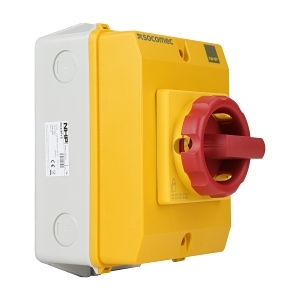

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Yellow, Handle - Red, 3P 63A
Brand: NHP
SKU: ISO363PYS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
Technical Specifications
- Rated Permanent Current: 63 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Operation Current: 22 A at AC 23A 690 V
- Rated Short Time Withstand Current: 2.52 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Type of Electrical Connection: Screw connection
- Rated Operating Voltage: 690 V
- Number of Auxiliary Contacts: 0 NC, 0 NO, 0 CO
- Motor Drive Integrated: No
- Degree of Protection: IP65, NEMA 4X
- Interlockable: No
- Number of Switches: 1
- Connectable Conductor Cross Section: 2.5-16 mm²
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.77 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Screw connection for secure electrical connections.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Any application requiring a reliable isolator switch
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable plastic housing reduces environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable isolation.
