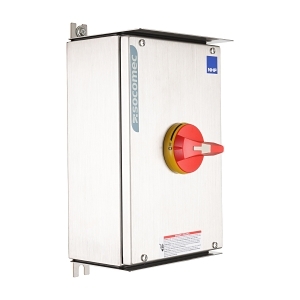

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Stainless Steel, Handle - Red, 3P 100A
Brand: NHP
SKU: ISO3100SSYS
Alternatively Known As: ISO Switch, Isolator Switch, Switch Disconnector
Technical Specifications
- Rated Permanent Current: 100 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Operation Current at AC 23A 400V: 70 A
- Rated Operation Current at AC 23A 690V: 100 A
- Rated Short Time Withstand Current: 5 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Operating Voltage: 690 V
- Conditioned Rated Short Circuit Current: 20 kA
- Number of Auxiliary Contacts (Normally Closed): 0
- Number of Auxiliary Contacts (Normally Open): 0
- Colour Control Element: Red
- Degree of Protection: IP65
- NEMA Rating: 4X
- Connectable Conductor Cross Section: 10-70 mm²
- Dimensions (H x L x W): 309mm x 120mm x 200mm
- Weight: 0.77 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Stainless steel construction for durability and corrosion resistance.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for isolating electrical circuits in various industrial applications.
- Commercial: Ideal for commercial buildings requiring reliable isolation solutions.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase, ideal for industrial and commercial applications.
