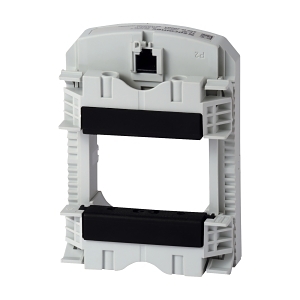

Product Name/Title: Socomec TE-90 Solid Core CT 600-2000A 64 x 64mm Holes 90mm Centres for Digiware and DIRIS A-xx
Brand: NHP
SKU: 48290506
Alternatively Known As: Current Transformer, Solid Core CT, TE Solid Core CT
Technical Specifications
- Primary Rated Current: 2000 A
- Secondary Rated Current: 0.1 A
- Rated Operating Frequency: 50-60 Hz
- Max Operating Voltage: 600 V
- Rated Short Time Thermal Current: 20 kA
- Accuracy Class: 0.2S
- Over Current Limiting Factor: FS 10
- Secondary Rated Apparent Power: 0.1 VA
- Calibrated: Yes
- Current Transformer Type: Solid core
- Material Housing: Plastic
- Model: Through-feed current converter
- With Shock Protection: Yes
- Snap Mounting: Yes
- With Copper Rail: Yes
- Secondary Connection: Plug-in connection
- Number of Primary Inputs: 1
- Opening Diameter: 64 mm
- Storage Temperature: -25-85 °C
- Dimensions (H x L x W): 64mm x 90mm x 64mm
- Weight: 1.5 kg
Key Features
- Solid core design for reliable current measurement.
- Plug-in secondary connection for easy installation.
- Shock protection and snap mounting for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Power monitoring and control systems
- Commercial: Energy management solutions
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable plastic housing reduces environmental impact and enhances longevity.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec TE-90 Solid Core CT 600-2000A is available now for immediate purchase, ideal for industrial and commercial energy management applications.
