BRAND: NHP

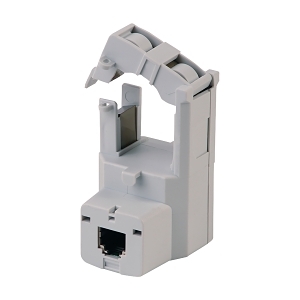

Socomec TR-21 Split Core CT 63-250A 21 x 23mm for Digiware and DIRIS A-xx


$254.40 List price: $337.90
+

Product Name/Title: Socomec TR-21 Split Core CT 63-250A 21 x 23mm for Digiware and DIRIS A-xx

Brand: NHP

SKU: 48290557

Alternatively Known As: Split Core Current Transformer, Current Sensor

Technical Specifications
  • Primary Rated Current: 250 A
  • Secondary Rated Current: 0.1 A
  • Rated Operating Frequency: 50-60 Hz
  • Max Operating Voltage: 300 V
  • Accuracy Class: 0.5
  • Over Current Limiting Factor: FS 10
  • Secondary Rated Apparent Power: 0.1 VA
  • Current Transformer Type: Split core
  • Material Housing: Plastic
  • Secondary Connection: Plug-in connection
  • Number of Primary Inputs: 1
  • Opening Diameter: 21 mm
  • Storage Temperature: -25-85 °C
  • Dimensions (H x L x W): 21mm x 23mm x 21mm
  • Weight: 0.5 kg
Key Features
  • Split core design for easy installation.
  • Calibrated for accurate measurements.
  • Shock protection included for safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Industrial: Power monitoring and management
  • Commercial: Energy efficiency applications
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Helps in monitoring energy consumption, leading to reduced waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec TR-21 Split Core CT 63-250A is available now for immediate purchase, ideal for energy monitoring applications.

48290557-AU-Current-Transformer-Datasheet.pdf (48290557-AU-Current-Transformer-Datasheet.pdf, 283 Kb) [Download]
