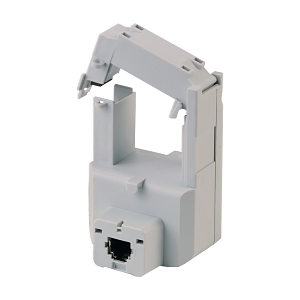

Product Name/Title: Socomec TR-32 Split Core CT 160-600A 32 x 33mm for Digiware and DIRIS A-xx
Brand: NHP
SKU: 48290558
Alternatively Known As: Current Transformer, Split Core CT, NHP Current Transformer
Technical Specifications
- Primary Rated Current: 600 A
- Secondary Rated Current: 0.1 A
- Rated Operating Frequency: 50-60 Hz
- Max Operating Voltage: 300 V
- Accuracy Class: 0.5
- Over Current Limiting Factor: FS 10
- Secondary Rated Apparent Power: 0.1 VA
- Calibrated: Yes
- Current Transformer Type: Split core
- Material Housing: Plastic
- With Shock Protection: Yes
- Snap Mounting: Yes
- With Copper Rail: Yes
- Secondary Connection: Plug-in connection
- Number of Primary Inputs: 1
- Opening Diameter: 32 mm
- Storage Temperature: -25-85 °C
- Dimensions (H x L x W): 32mm x 33mm x 32mm
- Weight: 1.0 kg
Key Features
- Split core design for easy installation without disconnecting the circuit.
- Calibrated for accurate current measurement.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power monitoring and control systems
- Commercial: Energy management solutions
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Helps in energy management and efficiency, reducing overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec TR-32 Split Core CT 160-600A 32 x 33mm is available now for immediate purchase. Ideal for industrial and commercial energy management applications.
