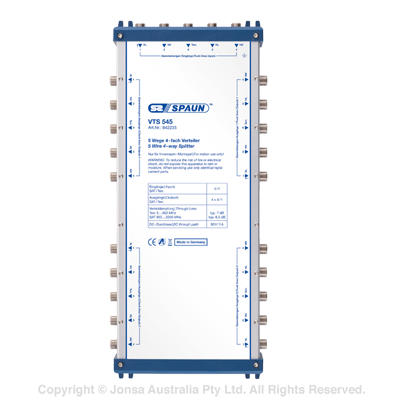

Product Name/Title: SPLITTER 4 WAY 5 WIRE
Brand: Jonsa
SKU: DS/VTS545
Alternatively Known As: 4 Way Splitter, 5 Wire Splitter, Digital Distribution Splitter
Technical Specifications
- Inputs SAT-IF / TERR-RF: 4/1
- Outputs SAT-IF / TERR-RF: 4/1 + 4/1 + 4/1 + 4/1
- Frequency Range: 5 … 862 MHz and 950 … 2200 MHz
- Through Loss Terr-RF: 7 dB
- Through Loss SAT-IF: 8.5 dB
- Isolation Input / Input: > 35 dB
- Isolation Output / Output TERR-RF: > 25 dB
- Isolation Output / Output SAT-IF: > 18 dB
- Max DC-Through: 30 V / 1 A
- Ambient Temperature: -20 … +50 ºC
- Dimensions (H x L x W): 40mm x 305mm x 130mm
- Weight: 1.5 kg
Key Features
- Reduces installation expenditures for large digital distribution systems.
- Divides RF signal of terrestrial trunk line and SAT-IF trunk line into multiple outputs.
- Each trunk line has a separate DC-pass connected to respective output ports.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Commercial: Large digital distribution systems
- Residential: Home entertainment systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient signal distribution reduces energy waste in large systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa 4 Way 5 Wire Splitter is available now for immediate purchase. Ideal for commercial and residential digital distribution systems.
