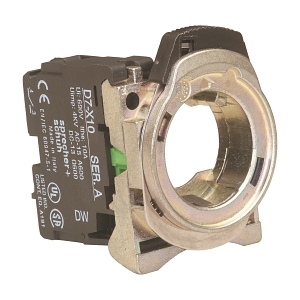

Product Name/Title: Sprecher and Schuh D7 Contact Block Metal Latch Mount 1 N.O. Contact for 22.5mm Pushbutton
Brand: NHP
SKU: D7MX10
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, Pushbutton Contact Block
Technical Specifications
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 (120 V): 6 A
- Rated Operation Current at AC 15 (240 V): 3 A
- Rated Operation Current at AC 15 (400 V): 1.8 A
- Rated Operation Current at DC 13 (125 V): 0.55 A
- Rated Operation Current at DC 13 (250 V): 0.27 A
- Minimum Contact Rating Current: 5 mA
- Minimum Contact Rating Voltage: 17 V
- Dimensions (H x L x W): 22.5mm x 50mm x 22.5mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (N.O.) contact for reliable operation.
- Compatible with 22.5mm pushbutton operators.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and automation systems
- Commercial: Equipment requiring reliable pushbutton control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Metal Latch Mount 1 N.O. Contact is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable pushbutton control.
