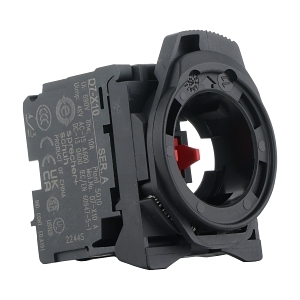

Product Name/Title: Sprecher and Schuh D7 Contact Block Screw 1 N.C. 1 N.O. Plastic Plate for 22.5mm Pb
Brand: NHP
SKU: D7PX11
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, 22.5mm Contact Block
Technical Specifications
- Number of contacts: 1 N.C., 1 N.O.
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15, 120 V: 6 A
- Rated operation current at AC 15, 240 V: 3 A
- Rated operation current at AC 15, 400 V: 1.8 A
- Rated operation current at DC 13, 125 V: 0.55 A
- Rated operation current at DC 13, 250 V: 0.27 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Dimensions (H x L x W): 22.5mm x 50mm x 22.5mm
- Weight: 0.2 kg
Key Features
- 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) contact configuration.
- Rated insulation voltage of 690 V.
- Compatible with 22.5mm operator panels.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and automation systems
- Commercial: Electrical installations requiring auxiliary contacts
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Screw 1 N.C. 1 N.O. Plastic Plate for 22.5mm Pb is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
