D7MP4MN3R
BRAND: NHP

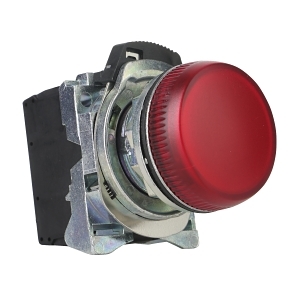

Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 24V AC DC Red Lens


$47.40 List price: $62.90
+

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 24V AC DC Red Lens

Brand: NHP

SKU: D7MP4MN3R

Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Current: 0.03 A
  • Rated Frequency: 50-60 Hz
  • Lamp Power: 1 W
  • Operating Voltage: 24 V
  • Colour Lens: Red
  • Degree of Protection: IP65/IP66
  • Material Front Ring: Metal
  • With Light Source: Yes
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Luminous Intensity: 0.01 cd
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with a durable metal front ring.
  • IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5 mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable status indication.

D7MP4MN3R-AU-Pilot-Light-22.5mm-Datasheet.pdf (D7MP4MN3R-AU-Pilot-Light-22.5mm-Datasheet.pdf, 325 Kb) [Download]
