D7PP4PN5R
BRAND: NHP

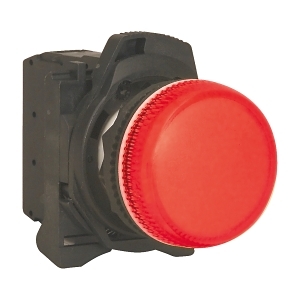

Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 120V AC Red


$85.60 List price: $113.70
+

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 120V AC Red

Brand: NHP

SKU: D7PP4PN5R

Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC
  • Rated Current: 0.03 A
  • Rated Frequency: 50-60 Hz
  • Lamp Power: 1 W
  • Operating Voltage: 120 V
  • Colour Lens: Red
  • Degree of Protection: IP65/IP66/IP69K
  • Material Front Ring: Plastic
  • With Light Source: Yes
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Luminous Intensity: 0.01 cd
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with a red lens for clear visibility.
  • IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 120V AC Red is available now for immediate purchase. Ideal for industrial and commercial applications.

D7PP4PN5R-AU-Pilot-Light-22.5mm-Datasheet.pdf (D7PP4PN5R-AU-Pilot-Light-22.5mm-Datasheet.pdf, 274 Kb) [Download]
