BRAND: NHP

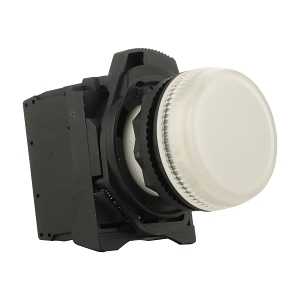

Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 24V AC DC Clear Lens


$34.70 List price: $46.00
+

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 24V AC DC Clear Lens

Brand: NHP

SKU: D7PP7PN3W

Alternatively Known As: Indicator Light, LED Pilot Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Current: 0.03 A
  • Rated Frequency: 50-60 Hz
  • Lamp Power: 1 W
  • Operating Voltage: 24 V
  • Degree of Protection: IP65/IP66/IP69K
  • Material: Plastic front ring
  • Construction Type: Round lens
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Hole Diameter: 22.5 mm
  • Diameter Cap: 29.6 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 22.5mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with clear lens.
  • IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.

D7PP7PN3W-AU-Pilot-Light-22.5mm-Datasheet.pdf (D7PP7PN3W-AU-Pilot-Light-22.5mm-Datasheet.pdf, 223 Kb) [Download]
