D7PPOT6
BRAND: NHP

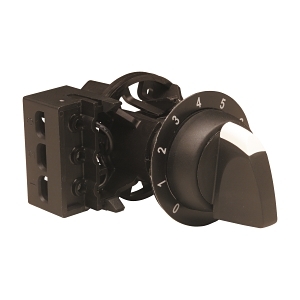

Sprecher and Schuh D7 Potentiometer 22.5mm 10000 Ohm Resistive Element


$228.10 List price: $302.90
+

Product Name/Title: Sprecher and Schuh D7 Potentiometer 22.5mm 10000 Ohm Resistive Element

Brand: NHP

SKU: D7PPOT6

Alternatively Known As: D7 Potentiometer, 22.5mm Potentiometer, 10000 Ohm Potentiometer

Technical Specifications
  • Resistance: 10000 Ohm
  • Mechanical life: 10,000,000 cycles
  • Max vibration acceleration: 10 m/s²
  • Max vibration frequency operational: 2000 Hz
  • Max shock acceleration: 100 g
  • Max shock duration: 11 ms
  • Hole diameter: 22.5 mm
  • Operating temperature: -25 to 70 °C
  • Dimensions (H x L x W): 22.5mm x 22.5mm x 22.5mm
  • Weight: 0.1 kg
Key Features
  • Resistive element designed for 22.5mm potentiometers.
  • High mechanical life of 10 million cycles.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Industrial: Control systems, automation equipment
  • Commercial: Instrumentation, audio equipment
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Long mechanical life reduces waste and the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Potentiometer 22.5mm 10000 Ohm Resistive Element is available now for immediate purchase. Ideal for industrial and commercial applications.

D7PPOT6-AU-Resistive-Element-for-22.5mm-Potentiometer-Datasheet.pdf (D7PPOT6-AU-Resistive-Element-for-22.5mm-Potentiometer-Datasheet.pdf, 354 Kb) [Download]
