BRAND: NHP

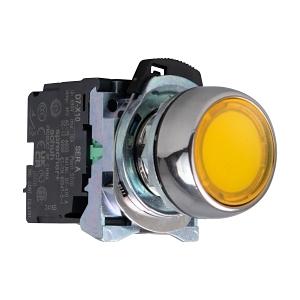

Sprecher and Schuh D7 Pushbutton 22.5 mm Complete Metal MOM Flush YLW Lens Cap 24V Illuminated 1NO


$125.50 List price: $166.60
+

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Complete Metal MOM Flush YLW Lens Cap 24V Illuminated 1NO

Brand: NHP

SKU: D7MLF5MN3WX10

Alternatively Known As: D7 Pushbutton, 22.5mm Illuminated Switch, MOM Pushbutton

Technical Specifications
  • Number of contacts: 1 NO
  • Supply voltage: 24 V
  • Type of electric connection: Screw connection
  • Material front ring: Metal
  • Degree of protection: IP65/IP66
  • Suitable for illumination: Yes
  • Max shock acceleration: 100 g
  • Max vibration acceleration: 10 m/s²
  • Max vibration frequency operational: 2000 Hz
  • Hole diameter: 22.5 mm
  • Dimensions (H x L x W): 29.6mm x 22.5mm x 22.5mm
  • Weight: 0.2 kg
Key Features
  • 22.5 mm pushbutton with a yellow lens cap.
  • IP65/IP66 rated for protection against dust and water.
  • Screw connection for reliable electrical connection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery operation
  • Commercial: Equipment control, automation systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pushbutton 22.5 mm Complete Metal MOM Flush YLW Lens Cap 24V Illuminated 1NO is available now for immediate purchase. Ideal for industrial and commercial applications.

D7MLF5MN3WX10-AU-Pushbutton-22.5mm-Datasheet.pdf (D7MLF5MN3WX10-AU-Pushbutton-22.5mm-Datasheet.pdf, 374 Kb) [Download]
