BRAND: NHP

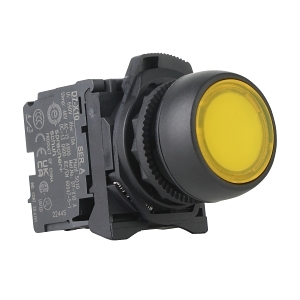

Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Yellow Lens Cap Illuminated 240V NO


$129.90 List price: $172.50
+

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Yellow Lens Cap Illuminated 240V NO

Brand: NHP

SKU: D7PLF5PN7WX10

Alternatively Known As: D7 Pushbutton, Illuminated Pushbutton, Yellow Lens Cap Pushbutton

Technical Specifications
  • Number of contacts (NO): 1
  • Number of contacts (NC): 0
  • Type of electric connection: Screw connection
  • Supply voltage lamp: 240 V
  • Colour button: Yellow
  • Type of button: Flush
  • With front ring: Yes
  • Material front ring: Plastic
  • Degree of protection: IP65/IP66/IP69K
  • Switching function latching: No
  • Max shock acceleration: 100 g
  • Max vibration acceleration: 10 m/s²
  • Max vibration frequency operational: 2000 Hz
  • Suitable for illumination: Yes
  • Hole diameter: 22.5 mm
  • Operator diameter: 29.6 mm
  • Dimensions (H x L x W): 29.6mm x 22.5mm x 22.5mm
  • Weight: 0.2 kg
Key Features
  • 22.5 mm flush pushbutton with yellow lens cap.
  • IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery operation
  • Commercial: Equipment control in various settings
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Yellow Lens Cap Illuminated 240V NO is available now for immediate purchase. Ideal for industrial and commercial applications.

D7PLF5PN7WX10-AU-Pushbutton-22.5mm-Datasheet.pdf (D7PLF5PN7WX10-AU-Pushbutton-22.5mm-Datasheet.pdf, 351 Kb) [Download]
