D7MLF0
BRAND: NHP

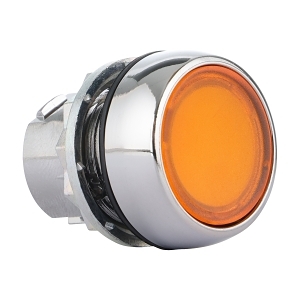

Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Metal Momentary Flush Amber Lens Cap Illuminated


$20.90 List price: $27.70
+

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Metal Momentary Flush Amber Lens Cap Illuminated

Brand: NHP

SKU: D7MLF0

Alternatively Known As: D7 Pushbutton, Amber Lens Pushbutton, Metal Momentary Switch

Technical Specifications
  • Colour Button: Amber
  • Type of Button: Flat
  • Material Front Ring: Metal
  • Colour Front Ring: Chrome
  • Degree of Protection (IP): IP66
  • Construction Type Lens: Round
  • Degree of Protection (NEMA): 5
  • Switching Function: Non-latching
  • Max Vibration Acceleration: 10 m/s²
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Shock Acceleration: 100 g
  • Number of Command Positions: 1
  • Suitable for Illumination: Yes
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 10mm x 22.5mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm flat pushbutton with amber lens for visibility.
  • Metal front ring for durability and aesthetic appeal.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery
  • Commercial: Equipment control, automation systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pushbutton is available now for immediate purchase, ideal for industrial and commercial control applications.

D7MLF0-AU-Pushbutton-22.5mm-Datasheet.pdf (D7MLF0-AU-Pushbutton-22.5mm-Datasheet.pdf, 316 Kb) [Download]
