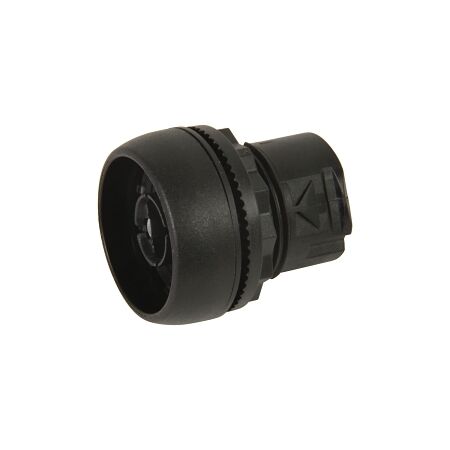

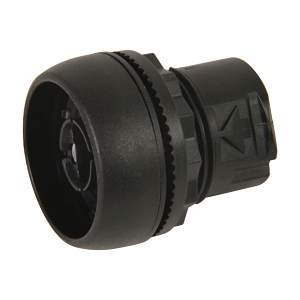

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Plastic MOM Extended No Cap included Non Ill
Brand: NHP
SKU: D7PE9
Alternatively Known As: D7 Pushbutton, 22.5mm Pushbutton Switch
Technical Specifications
- Type of button: High
- Material front ring: Plastic
- Colour front ring: Black
- Degree of protection (IP): IP66
- Construction type lens: Round
- With front ring: Yes
- Degree of protection (NEMA): 5
- Switching function: Non-latching
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Number of command positions: 1
- Suitable for illumination: No
- Hole diameter: 22.5 mm
- Dimensions (H x L x W): 14mm x 22.5mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5mm pushbutton design for easy integration.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels and machinery
- Commercial: Equipment requiring pushbutton controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable pushbutton controls.
Non-Returnable & Non-Cancellable
